    TR-One Black Fully Adjustable Direct Fit Wheel Mount for FANATEC PODIUM DD1 DD2 CSL DD Overview

    TR One Side-Mounted Fully Adjustable Fanatec Direct Drive Force Feedback Wheel Mount for Fanatec Podium DD1/DD2, DD PRO and CSL DD

    About the TR One Wheel Mounting System

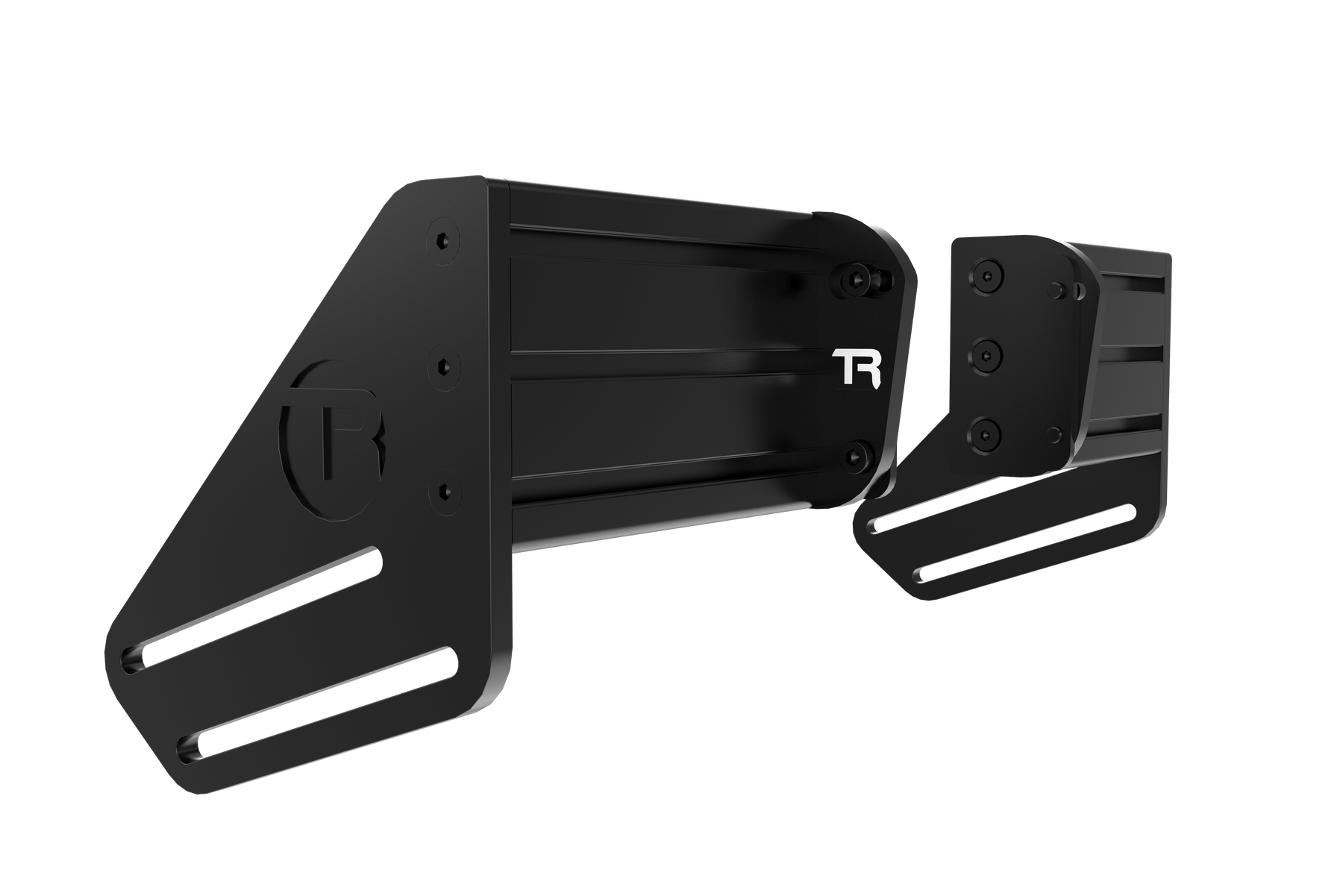

    The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.

    The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Black Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!

    Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates

    Material: Anodised Black Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel

    Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.

    Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).

    Total Wheel Mount Width (with Wheelbase added): 580mm/22.83"

    Direct Drive Mount for Fanatec Compatibility:

      Fanatec Podium DD1/DD2 (requires 2 x 5 mm spacer plates) Fanatec GT DD Pro (requires 4 x 5 mm spacer plates)
      Fanatec CSL DD (requires 4 x 5 mm spacer plates) Clubsport DD, Clubsport DD+ (requires 4 x 5 mm spacer plates)
      Contact us if your product is not listed



      Specifications:

      • Side Plate Thickness/Material: 2 x 10mm/Aluminium - Anodised Red
      • Aluminium Profile Size/Length: 2 x 180mm 40x120mm Extruded Aluminum Profile
      • Internal Plate Thickness/Material (without brackets): 2 x 10mm/Aluminium - Anodised Red
      • Internal Fanatec Base Plate: 4 x 5mm (2 each side for CSL DD and 1 each side for Podium - Included)

      5 Year Warranty

      What's Included:

      TR One Base Kit:

      • 8 x M8 x 20mm Hex Screws
      • 12 x M8 x 25mm Hex Screws
      • 12 x M8 x 20mm Flat Screws
      • 8 x M8 Flat Washer
      • 8 x M8 Lock Washer
      • 8 x Spring T-Nuts M8
      • 2 x Fanatec Podium DD Plates
      • 2 x Wheel Mounting Plates
      • 4 x Side Profile Mounting Plates
      • 2 x 180mm 40 x 120mm Aluminium Profile (Threaded)
